381 Kilogram Commercial Electric Composter Food Waste Disposer Fully Automatic PLC Control Motor Gear Core Components

Certification
china WuXi TOGO Environment Equipment Co., Ltd. certification
china WuXi TOGO Environment Equipment Co., Ltd. certification
I'm Online Chat Now

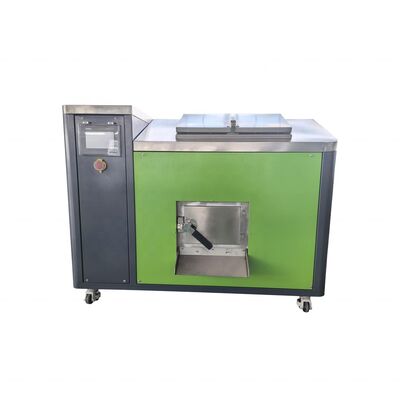

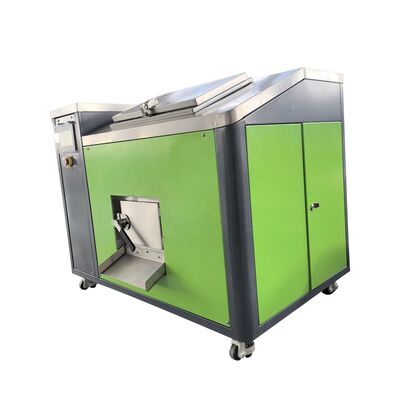

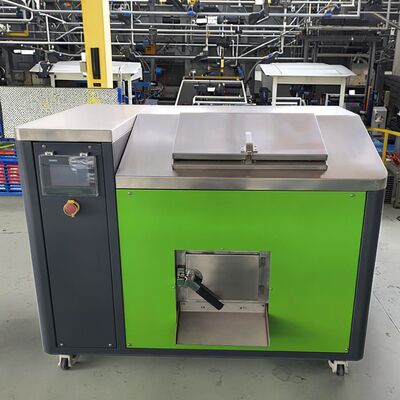

381 Kilogram Commercial Electric Composter Food Waste Disposer Fully Automatic PLC Control Motor Gear Core Components

381 Kilogram Commercial Electric Composter Food Waste Disposer Fully Automatic PLC Control Motor Gear Core Components
381 Kilogram Commercial Electric Composter Food Waste Disposer Fully Automatic PLC Control Motor Gear Core Components 381 Kilogram Commercial Electric Composter Food Waste Disposer Fully Automatic PLC Control Motor Gear Core Components 381 Kilogram Commercial Electric Composter Food Waste Disposer Fully Automatic PLC Control Motor Gear Core Components 381 Kilogram Commercial Electric Composter Food Waste Disposer Fully Automatic PLC Control Motor Gear Core Components 381 Kilogram Commercial Electric Composter Food Waste Disposer Fully Automatic PLC Control Motor Gear Core Components 381 Kilogram Commercial Electric Composter Food Waste Disposer Fully Automatic PLC Control Motor Gear Core Components

Large Image :  381 Kilogram Commercial Electric Composter Food Waste Disposer Fully Automatic PLC Control Motor Gear Core Components

Product Details: Payment & Shipping Terms:
Price: $13,000/sets 1-2 sets

381 Kilogram Commercial Electric Composter Food Waste Disposer Fully Automatic PLC Control Motor Gear Core Components

Description
Place Of Origin: Jiangsu, China Brand Name: TOGO
Model Number: TG-CC-80 Type: Food Waste Disposer
Warranty: 1 Year Material: Bubble Film And Corner Wrap
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Core Components: Motor, Gear, PLC, Gearbox Weight (kg): 381
Power(W): 6kw Keyword: Commercial Electric Composter
Function: Fermentation & Deodorization Daily Processing Capacity: 80KG/D
Processing Cycle: 24H Processing Method: Microbial Decomposition
Material: SUS303+Q235B+Appearance Painting Control Method: Fully Automatic PLC Control
Machine Size: 1500*960*1165mm (L*W*H) Machine Weight: 381KGS
Application Fields: Restaurant, School, Office, Supermarket, Composting Sites, Etc.
Highlight:

Electric Composter Food Waste Disposer

,

Commercial Food Waste Disposer

PLC Control Fully Automatic Kitchen Food Waste Fertilizer Composting Machine

Product Description

TOGO has introduced its latest Food waste Electric Composter, Model No. TG-CC-80 can decompose up to 80 KGs of any type of organic food waste, per cycle using multi-stage indirect heat and dry composting method, tentatively within 24 hours. Stand-Alone and portable, the model has durable, and corrosion-resistant Stainless Steel contact parts. Built using best-in-class PLC technologies, the fully automatic TG-CC-80 has odour control and deodorisation features it. Meant for medium to large scale restaurants, fast food corners, medical institutions, aeroplane catering services, convention centres and canteens.

381 Kilogram Commercial Electric Composter Food Waste Disposer Fully Automatic PLC Control Motor Gear Core Components 0381 Kilogram Commercial Electric Composter Food Waste Disposer Fully Automatic PLC Control Motor Gear Core Components 1381 Kilogram Commercial Electric Composter Food Waste Disposer Fully Automatic PLC Control Motor Gear Core Components 2381 Kilogram Commercial Electric Composter Food Waste Disposer Fully Automatic PLC Control Motor Gear Core Components 3381 Kilogram Commercial Electric Composter Food Waste Disposer Fully Automatic PLC Control Motor Gear Core Components 4381 Kilogram Commercial Electric Composter Food Waste Disposer Fully Automatic PLC Control Motor Gear Core Components 5

Specifications



Organic Composter Model No TG-CC-80
Organic Waste Processing Method Microbial Decomposition
Intake Capacity/ Turn of Cycle 80 Kilograms per cycle and per turn of batch
Time Taken by the Food Waste Composter to Process Waste Within 24hrs
Power Demands by the Organic Composting Machine 6KiloWatts only
Dimension Data of the Machine (Width×Depth×Height in MM) 1500*960*1165
Weight of the Organic Compositing Machine 381kg is its weight
Materials Used to Build the Composter Machine

Highly Durable Q235B + SUS304 + Appearance Painting

Average Reduction Rate in Terms of Volume by the Composting Machine

It is somewhere between 83-90%

Energy Requirement of the Machine

It needs 3 phases of power supply, 50Hz of frequency presence, and 380 volts.

Installed Safety Precautions in the Machine

The impeller will stop running automatically if the hopper door is kept open.

Odour Treatment Protocol, to Check Foul Smell

The machine has a layer of odour protection control, that constitutes deodorisation and stinky smell check.

Installation Manual Guide

It is simple, and free of any special process or exhaust ventilation mechanism.

Bio-Degradable Food Waste, Eligible to Undergo Composting in the Machine

Anything that is organic can go for composting into the machine chamber.

Cautions to be Followed Inorganic waste is a total no for this machine.
Automation Control Guide to Handle the Composter

The fully automatic machine integrates a Siemens touch screen. It has a PLC control panel.

Warranty of the Composting Machine Model A standard of 1 year.
Packaging & Shipping

 381 Kilogram Commercial Electric Composter Food Waste Disposer Fully Automatic PLC Control Motor Gear Core Components 6

Company Information

TOGO Advantages:

  1. Brand Reputation
    We have over 16 years' environmental industry experience, we have build brand appreciation. We control the material quality strictly, to ensure the product quality, we have a great reputation in the industry.
  2. Technology Advantages
    We cooperate with famous colleges and engineering design institutes in Germany, Korea, Japan, and China chronically, to ensure the most advanced production technology.
  3. Service Advantages
    We provide integrated service including design, production, installment, and after-selling, we have a dedicated and responsible attitude, follow the industry quality rules strictly.
  4. Craft Advantages
    We have an advantage of technology, to ensure project quality, we have got the certificate of CE, ISO9001, ISO14001, ISO45001.
  5. Price Advantages
    We are committed to finding new cost-effective distributed kitchen waste treatment methods.

Our Services:

  • We always welcome customers to visit our manufacturing factory and get to know more about us.
  • Customers can see all the manufacturing workflows when they visit our factory.
  • We also send engineers to the customer's place to help with the installation!

381 Kilogram Commercial Electric Composter Food Waste Disposer Fully Automatic PLC Control Motor Gear Core Components 7381 Kilogram Commercial Electric Composter Food Waste Disposer Fully Automatic PLC Control Motor Gear Core Components 8

Certifications

 381 Kilogram Commercial Electric Composter Food Waste Disposer Fully Automatic PLC Control Motor Gear Core Components 9

Exhibition

381 Kilogram Commercial Electric Composter Food Waste Disposer Fully Automatic PLC Control Motor Gear Core Components 10

Contact us

 Email: info @togohb.com

WhatsApp/WeChat: +86 13906153006

381 Kilogram Commercial Electric Composter Food Waste Disposer Fully Automatic PLC Control Motor Gear Core Components 11381 Kilogram Commercial Electric Composter Food Waste Disposer Fully Automatic PLC Control Motor Gear Core Components 12
